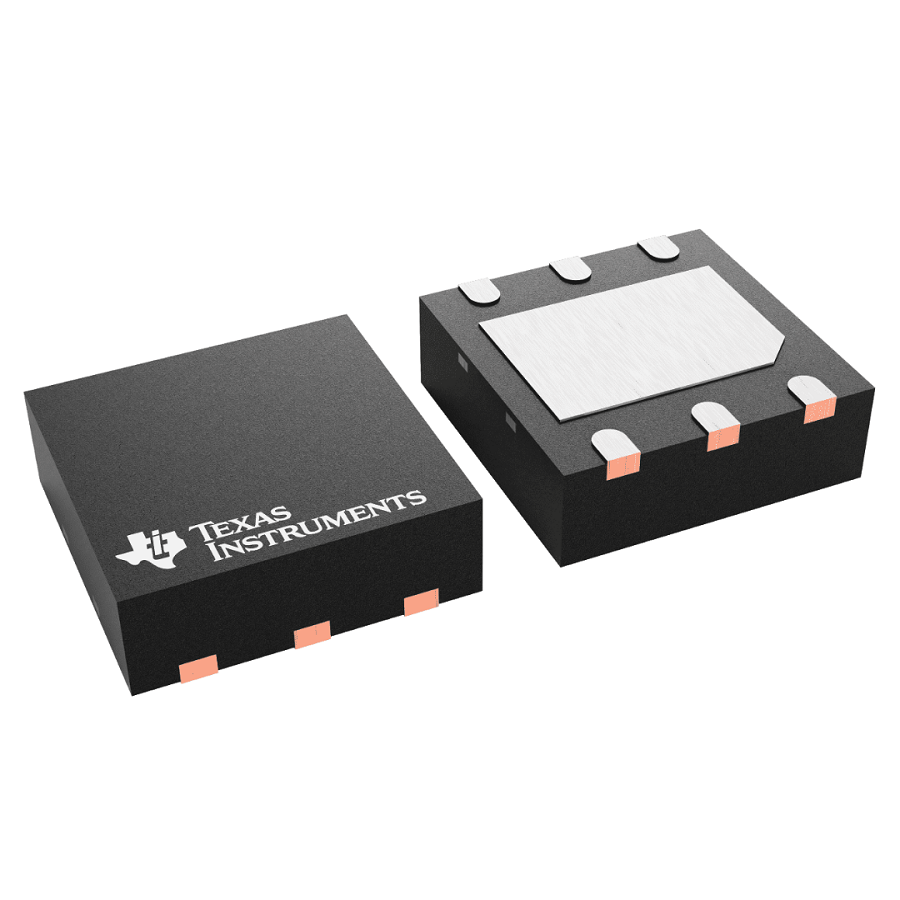

BQ26100DRPR
Manufacturer:
Texas Instruments
Mfr.Part #:
BQ26100DRPR
Datasheet:
Description:
Battery Management VSON-6 SMD/SMT Li-Ion Battery Authorization
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 1 mm |
| Packaging | Reel |
| Thickness | 0.95 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Interface | Serial |
| Min Input Voltage | 2.5 V |
| Output Current | 5 mA |
| Operating Supply Voltage | 2.5 V to 5 V |
| Max Supply Voltage | 5 V |
| Min Supply Voltage | 2.5 V |
| Operating Supply Current | 50 µA |
| Logic Function | OR |
| Function | Battery Authorization |
| Battery Type | Li-Ion |
Stock: 2895
Distributors
pcbx
pcbxUnit Price$0.86348
Ext.Price$0.86348
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.86348 | $0.86348 |
| 10 | $0.84080 | $8.40800 |
| 25 | $0.81872 | $20.46800 |
| 50 | $0.79722 | $39.86100 |
| 100 | $0.77627 | $77.62700 |
| 300 | $0.72086 | $216.25800 |
| 500 | $0.66941 | $334.70500 |
| 1000 | $0.42148 | $421.48000 |
| 3000 | $0.40010 | $1200.30000 |
